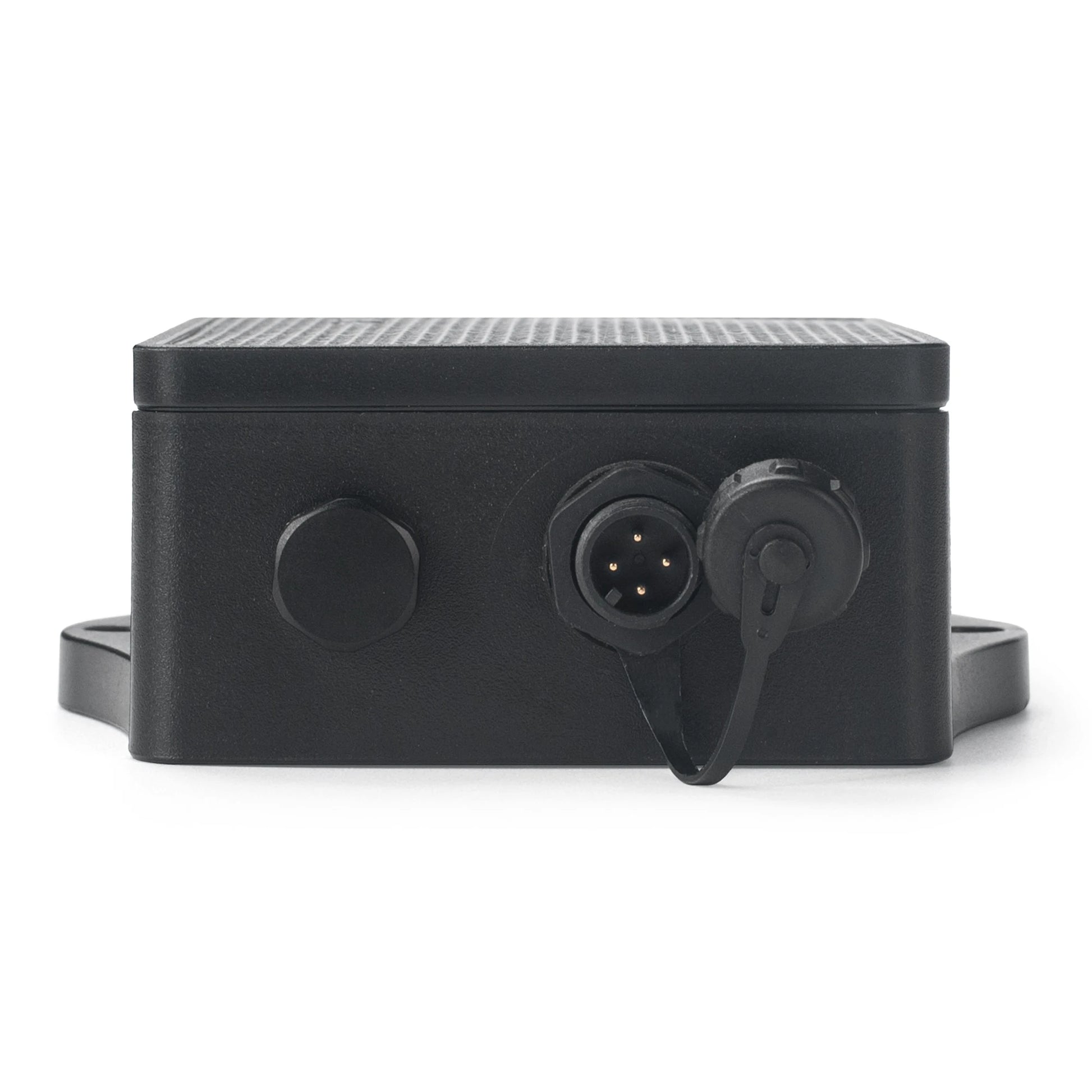

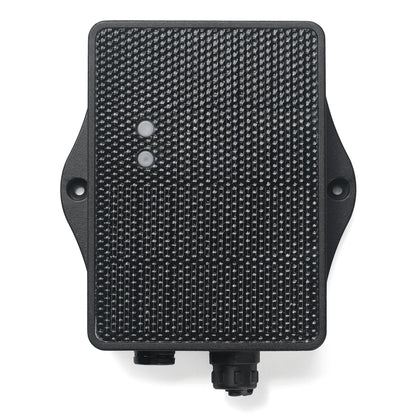

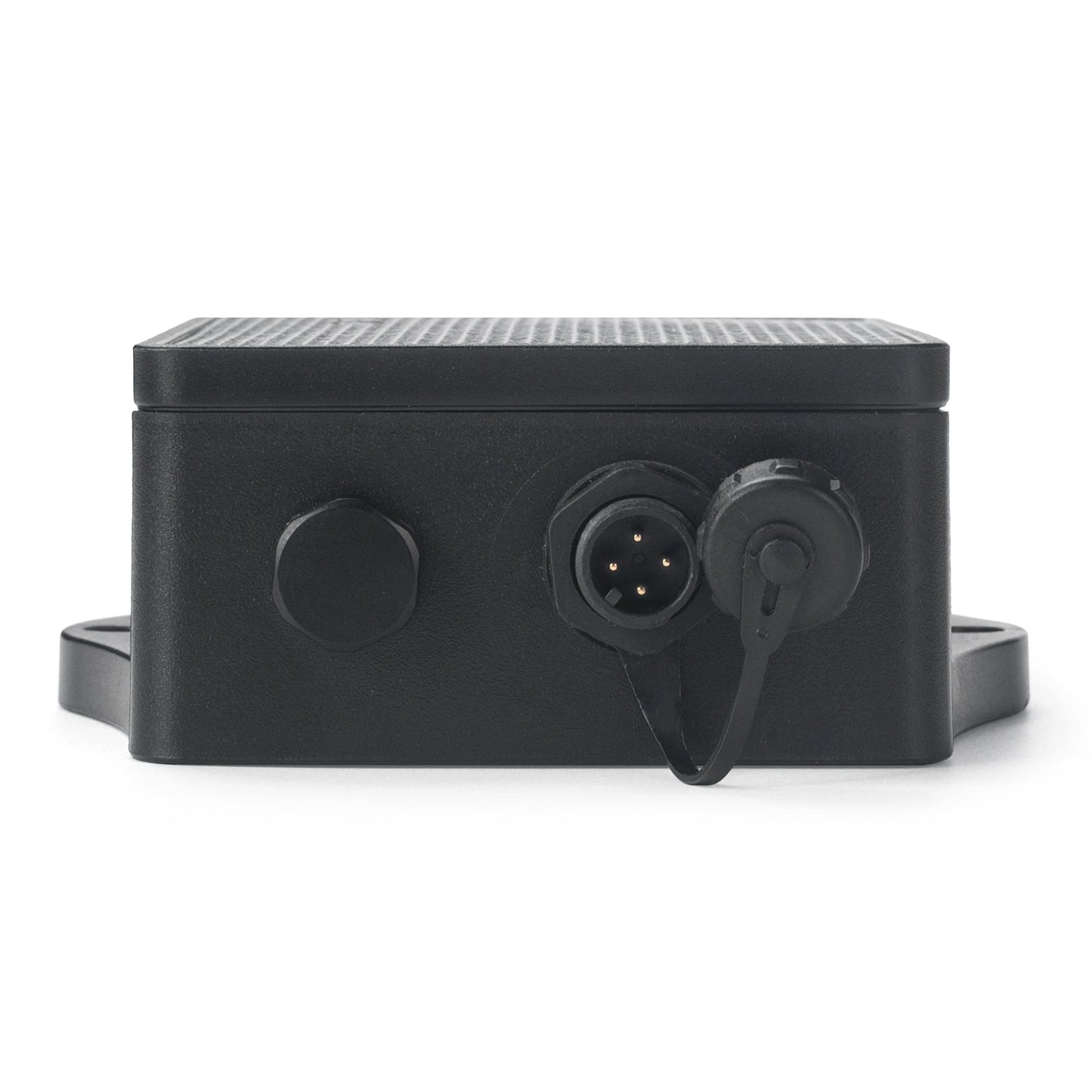

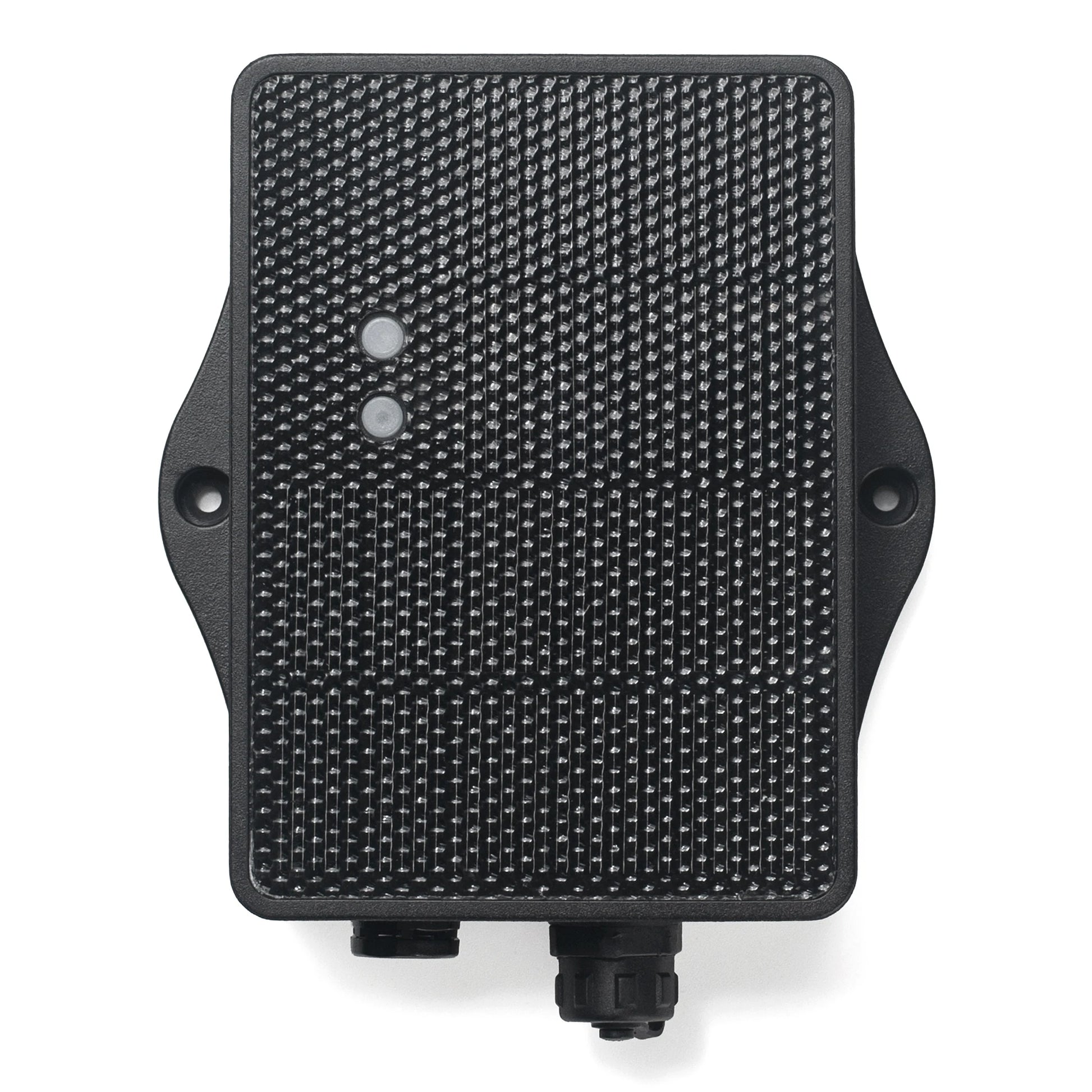

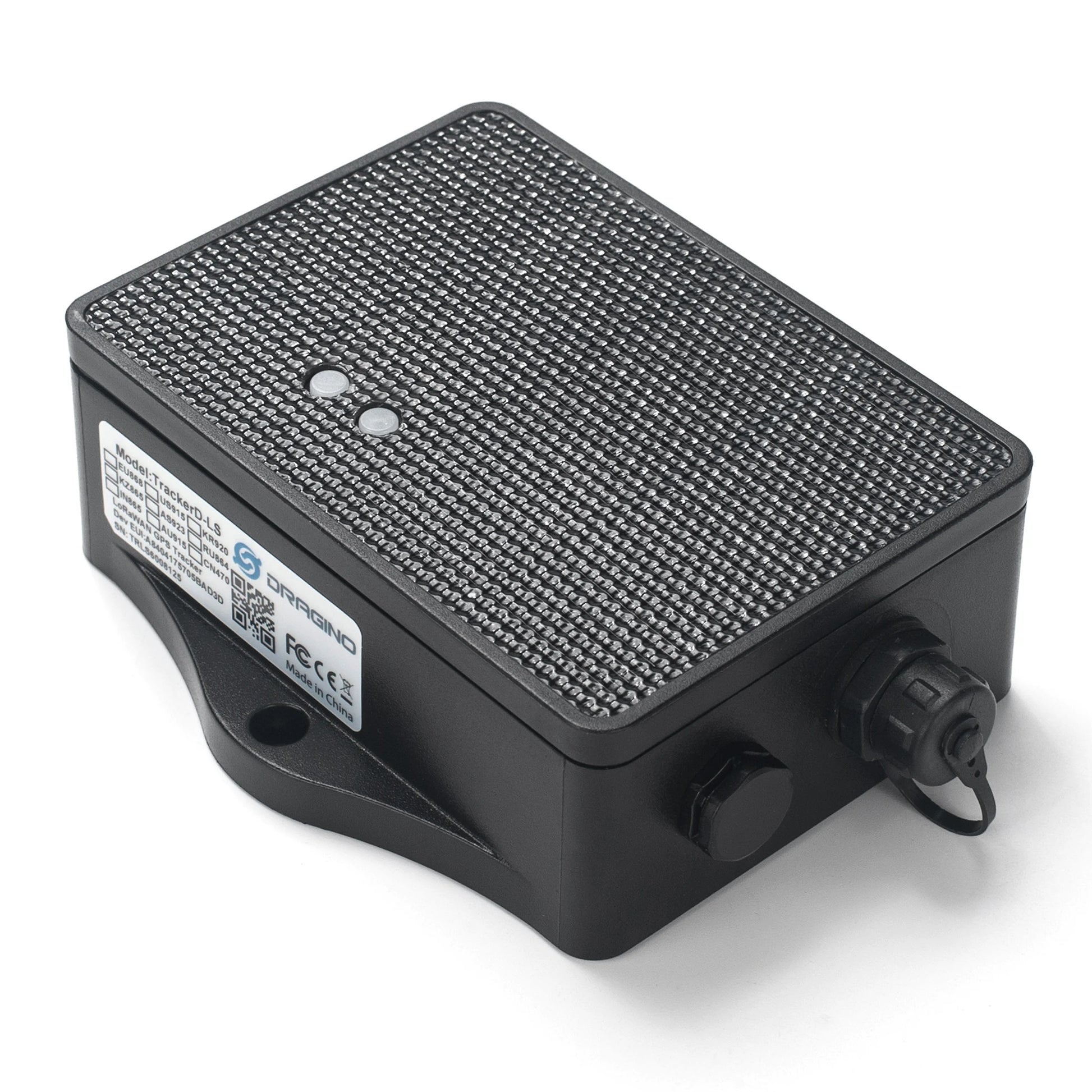

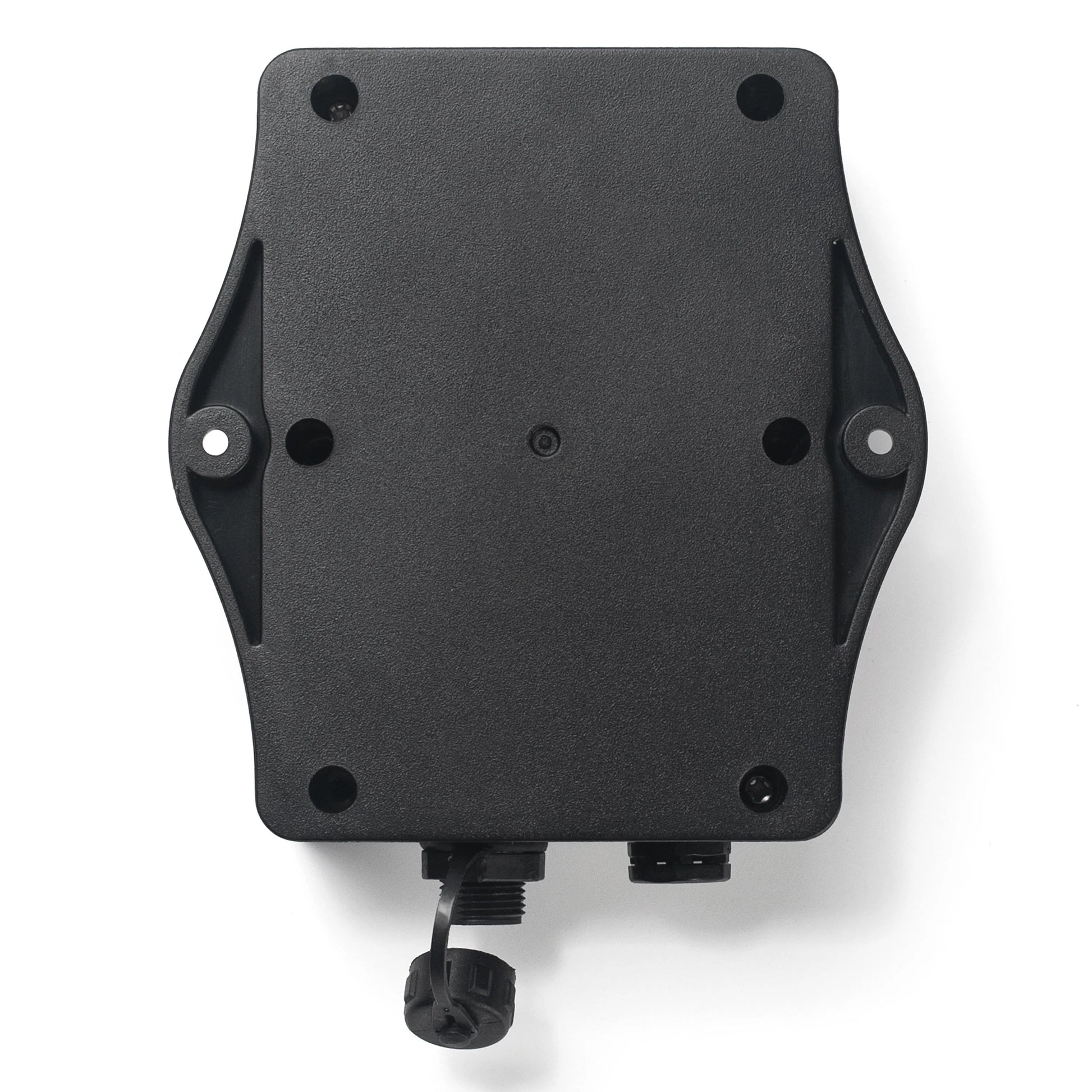

TrackerD-LS -- LoRaWAN Asset Tracker

TrackerD-LS is an Open Source LoRaWAN Asset Tracker based on ESP32 MCU and Semtech LoRa Wireless Chip. It can get the location data via GPS and set it to IoT server via LoRaWAN network.

TrackerD-LS supports Motion Detection, when there is motion, TrackerD-LS can send data more frequently and it will save power when no motion is detected.

The LoRa wireless technology used in TrackerD-LS allows the user to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional tracking services.

When there is no LoRaWAN network, TrackerD-LS can save the location data. It will send these data to IoT server when there is LoRaWAN network coverage.

TrackerD-LS is equipped with a 3000mAh Li-ion rechargeable battery + Solar Panel which let the device can be used for many years. Each TrackerD-LS has a worldwide unique OTAA keys to join the LoRaWAN network.

TrackerD-LS is program friendly. Developers can use Arduino IDE to customize the software of TrackerD-LS to fit their IoT solution.



Features:

  • LoRaWAN 1.0.3 Class A

  • ESP32 PICO D4

  • SX1276/78 Wireless Chip

  • Arduino IDE Compatible

  • Open source hardware / software

  • Regular/ Real-time GPS tracking

  • Built-in3 axis accelerometer.

  • Motion sensing capability

  • Power Monitoring

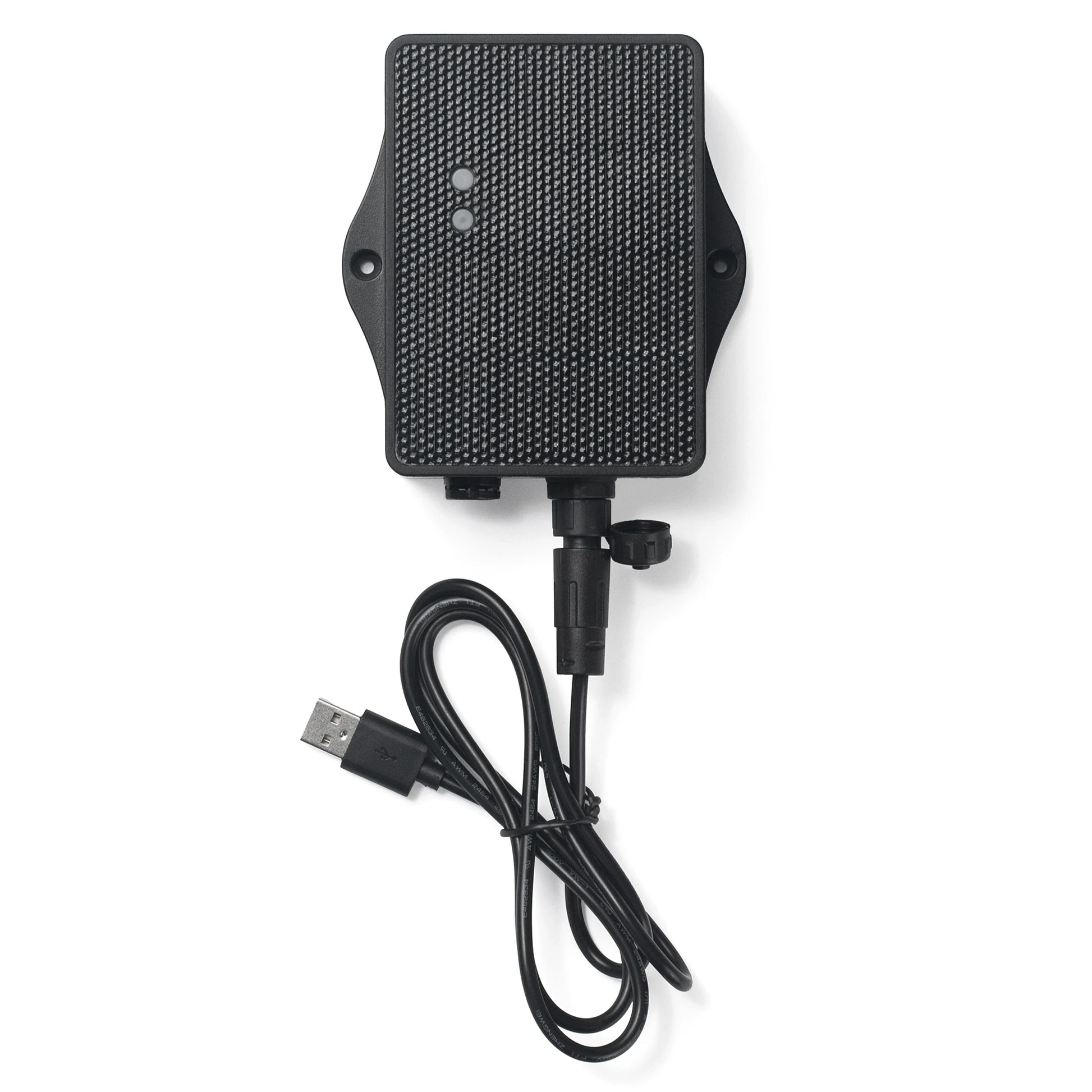

  • Charging circuit via USB port

  • 3000mA Rechargeable Li-ion Battery + Solar Panel

  • Datalog

Applications:

  • Logistics and Supply Chain Management



Specifications:

Micro Controller:

  • Espressif ESP32 PICO D4

  • MCU: ESP32 PICO D4

  • Integrated SPI flash : 4 MB

  • RAM: 448 KB

  • EEPROM: 520 KB

  • Clock Speed: 32Mhz

Common DC Characteristics:

  • Supply Voltage: 2.5v ~ 3.6v

  • Operating Temperature: -40 ~ 60°C

LoRa Spec:

  • Frequency Range,  168 dB maximum link budget.+20 dBm - 100 mW constant RF output vs.

    • Band 1 (HF): 862 ~ 1020 Mhz

  • +14 dBm high efficiency PA.

  • Programmable bit rate up to 300 kbps.

  • High sensitivity: down to -148 dBm.

  • Bullet-proof front end: IIP3 = -12.5 dBm.

  • Excellent blocking immunity.

  • Low RX current of 10.3 mA, 200 nA register retention.

  • Fully integrated synthesizer with a resolution of 61 Hz.

  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.

  • Built-in bit synchronizer for clock recovery.

  • Preamble detection.

  • 127 dB Dynamic Range RSSI.

  • Automatic RF Sense and CAD with ultra-fast AFC.

  • Packet engine up to 256 bytes with CRC.

  • LoRaWAN 1.0.3 Specification

Battery:

  • 3000mA Li-ion Battery power

  • Built-in Solar Panel

Power Consumption:

  • Sleeping Mode: 60uA

  • LoRa Transmit Mode: 125mA @ 20dBm 44mA @ 14dBm

  • Tracking: max: 38mA



TrackerD -- LoRaWAN Tracker



TrackerD is equipped with a 1000mAh Li-on rechargeable battery. Each TrackerD has a worldwide unique OTAA keys to join the LoRaWAN network.

In TrackerD, there are various sensors such as GPS, WiFi, BLE, Temperature, Humidity, Motion Detection, and Buzzer. User can use TrackerD for different tracking scenario.

TrackerD is program friendly. Developers can use Arduino IDE to customize the software of TrackerD to fit their IoT solution.

The LoRa wireless technology used in TrackerD allows the user to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional tracking services.

TrackerD is an Open Source LoRaWAN Tracker based on ESP32 MCU and Semtech LoRa Wireless Chip.

Features:



  • LoRaWAN 1.0.3 Class A

  • ESP32 PICO D4

  • SX1276/78 Wireless Chip

  • Arduino IDE Compatible

  • Open source hardware / software

  • Regular/ Real-time GPS,BLE,WIFI tracking

  • Built-in3 axis accelerometer (LIS3DH)

  • Humidity / temperature sensor : GXCAS Technology GXHT3X

  • Motion sensing capability

  • Power Monitoring

  • Charging circuit via USB port

  • 1000mA Li-on Battery power

  • Tri-color LED, Alarm button

  • Datalog

Applications:

  • Logistics and Supply Chain Management

  • Human tracking

Specifications:



Micro Controller:

  • Espressif ESP32 PICO D4

  • MCU: ESP32 PICO D4

  • Bluetooth: Bluetooth V4.2 BR/EDR and Bluetooth LE

  • WiFi : 802.11 b/g/n (802.11n up to 150 Mbps)

  • Integrated SPI flash : 4 MB

  • RAM: 448 KB

  • EEPROM: 520 KB

  • Clock Speed: 32Mhz

Common DC Characteristics:

  • Supply Voltage: 5V via USB port or Internal li-on battery

  • Operating Temperature: -40 ~ 60°C

LoRa Spec:



  • Frequency Range,  168 dB maximum link budget.

    • Band 1 (HF): 862 ~ 1020 Mhz

  • +20 dBm - 100 mW constant RF output vs.

  • +14 dBm high efficiency PA.

  • Programmable bit rate up to 300 kbps.

  • High sensitivity: down to -148 dBm.

  • Bullet-proof front end: IIP3 = -12.5 dBm.

  • Excellent blocking immunity.

  • Low RX current of 10.3 mA, 200 nA register retention.

  • Fully integrated synthesizer with a resolution of 61 Hz.

  • FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.

  • Built-in bit synchronizer for clock recovery.

  • Preamble detection.

  • 127 dB Dynamic Range RSSI.

  • Automatic RF Sense and CAD with ultra-fast AFC.

  • Packet engine up to 256 bytes with CRC.

  • LoRaWAN 1.0.3 Specification

Battery:



  • 1000mA Li-on Battery power (for model TrackerD)

Power Consumption:

  • Sleeping Mode: 200uA

  • LoRa Transmit Mode: 125mA @ 20dBm 44mA @ 14dBm

  • Tracking: max: 38mA
